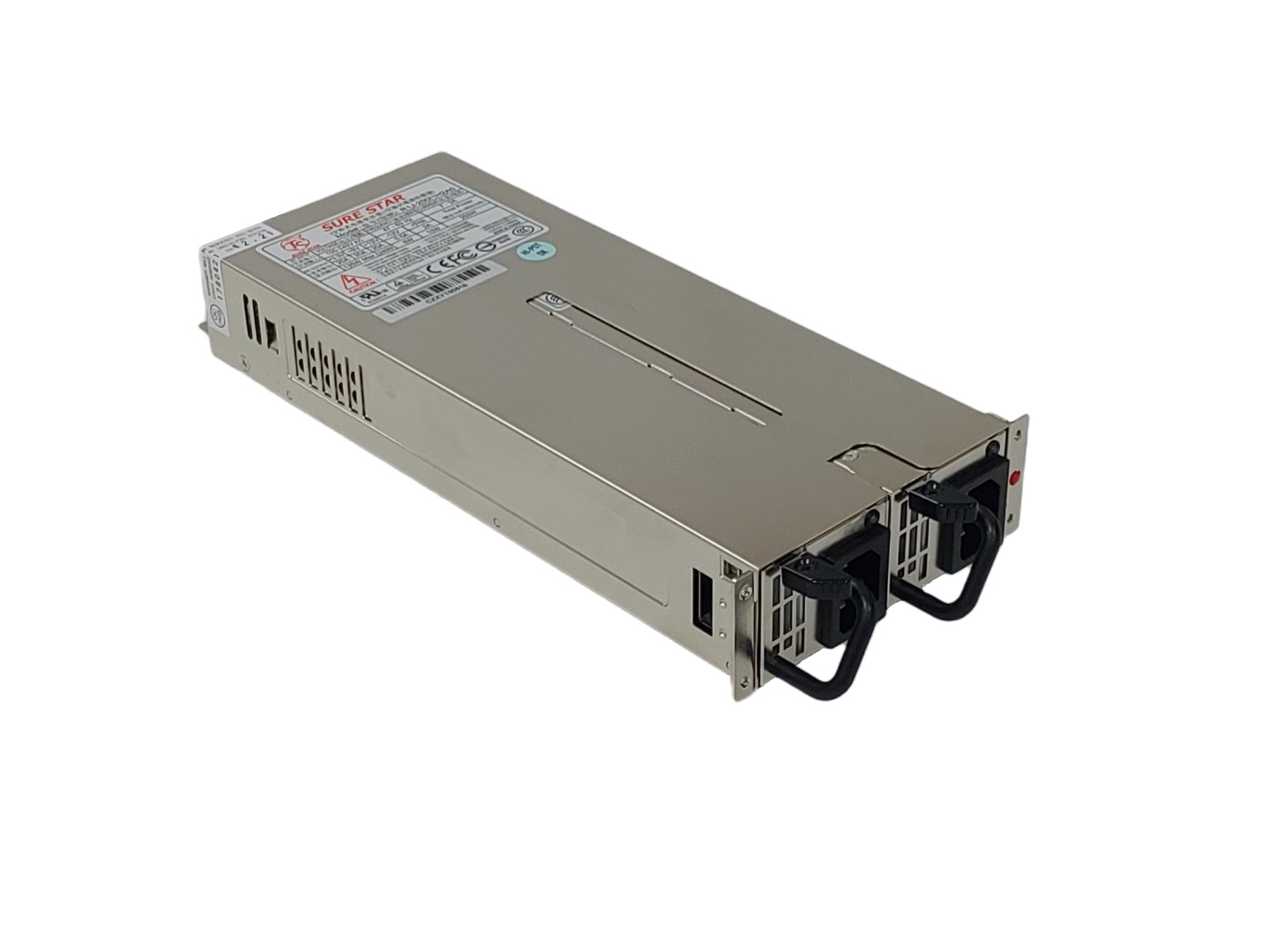

R1J-400I1H2A0 (400W+400W) R1J-400I1H2A0 (400W+400W)
model：R1J-400I1H2A0

R1J-400I1H2A0 (400W+400W)

1U FORM FACTOR
OPERATION TEMPERATURE: 0°C~45°C
File download

INPUT SPEC.

★Input voltage: 100 - 240Vac Full Range.
★Frequency: 50 - 60 Hz.
★Input Current: 6A for 115Vac,  3A for 230Vac.
★Inrush Current: 25A for 115Vac, 60A for 230Vac.
★The Minimum efficiency of the power supply is 80% with full load and 230Vac/50HZ input.



OUTPUT WATTAGE

400W



DC OUTPUT CHARACTERISTIC

Output Voltage Min. Current Max. Current Regulation Ripple & Noise
+3.3V 1A 20A ±5% 60mV
+5V 1A 20A ±5% 60mV
+12V 1A 32A ±5% 120mV
-12V 0A 0.5A ±5% 120mV
+5VSB 0.1A 2.5A ±5% 50mV

♦The combined total power from +3.3V and +5V shall not exceed 150W.

♦The max total power shall not exceed 400W.



FEATURES
★ Hot-Swappable & Power Sharing capability.
★ Full Range AC Input.
★ ACTIVE PFC
★ Hold Up Time: The output voltage stay in regulation at least 16ms with 100% load after loss of AC input.
★ ENVIRONMENT TEMPERATURE
    Operation Temperature: 0℃ to 45℃
    Cooling: By forced air
    Storage Temperature:-20℃ to 70℃
    Humidity: 5 to 90﹪non-condensing.

DIMENSION   Outline download

L x W x H:  260 x  106  x 41.50 (mm)  /  10.23 x 4.17 x 1.63 (inches)



SAFETY DOWNLOAD

UL  TUV   CB  CE  FCC  BSMI   CCC   REACH    RoHS


PACKAGE & WEIGHT

MODEL: R1J-400I1H2A0 NET WEIGHT GROSS WEIGHT OUTER CARTON DIMENSION
4 SETS / 1 CARTON 11.00KGS 11.40KGS 53 x 37 x 18 CM
24.71LBS 25.13LBS 20.86x14.56x7.08 INCHES
