Gold 500W Single Power Supply for 1U

Gold 500W Single Power Supply for 1U
model:tc1Gps11y501

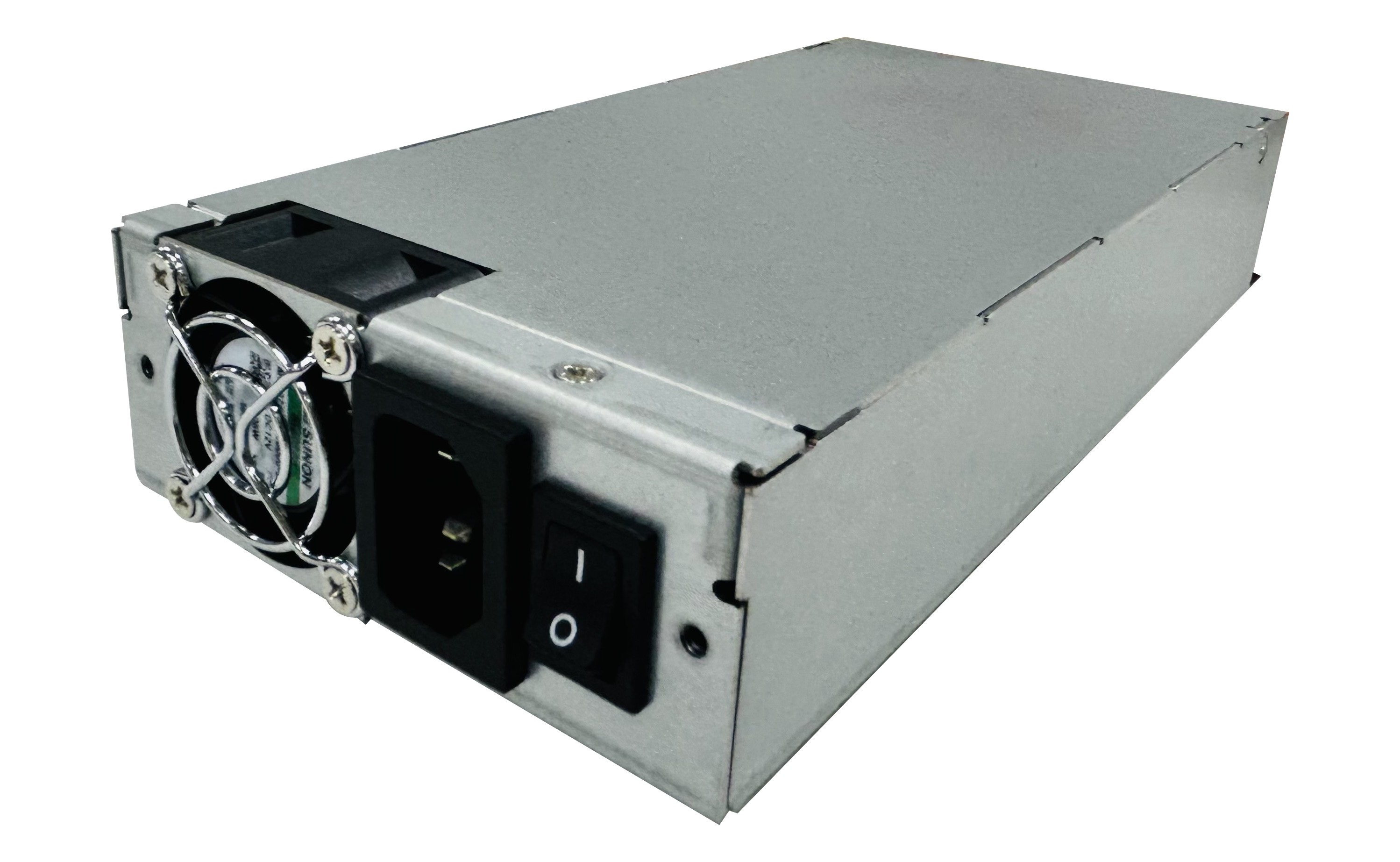

Gold 500W Single Power Supply for 1U

1U form factor
Altitude operating: Up to 5000m.
Operation Temperature: 0°C~50°C
The power efficiency shall meet 80plus GOLD 115Vac/60Hz input.
File download

INPUT SPEC.

★Input voltage: 100 - 240Vac Full Range.

★Frequency: 50 - 60 Hz.

★Input Current: 6.5A for 115Vac, 3.5A for 230Vac.

★Inrush Current: 25A Max. for 115Vac, 50A Max. for 230Vac.

★The power efficiency shall meet 80plus GOLD 115Vac/60Hz input.

★Power Factor: The minimum power factor shall be 0.95 with full load and input 230Vac/50Hz.


OUTPUT WATTAGE

500W



DC OUTPUT CHARACTERISTIC

Output Voltage Min. Current Max. Current Regulation Ripple & Noise
+3.3V 0.1A 15A ±5% 50mV
+5V 0.1A 15A ±5% 50mV
+12V 0.1A 40A ±5% 120mV
-12V 0A 0.5A ±10% 120mV
+5VSB 0A 3A ±5% 50mV

♦The combined total power from +3.3V and +5V shall not exceed 80W.

♦The max total power shall not exceed 500W.



FEATURES

★Temperature Range: Operating 0℃ to +50℃, Storage –20℃ to +70℃

★Efficiency: The power efficiency shall meet 80plus GOLD 115Vac/60Hz input.

★Hold up time: The output voltages stay in regulation at least 18ms with 75% load after loss of AC input.

★Over Current Protection

★Over Voltage Protection

★Short Circuit Protection

★Over Temperature Protection

★Safety: To meet UL, TUV, CB, CE, FCC.

DIMENSION   Outline download

L x W x H:  200 x  100  x 40.5 (mm)  /  7.87 x 3.94 x 1.59 (inches)



DOWNLOAD

UL   CB   TUV   CE   FCC   BSMI   CCC



PACKAGE & WEIGHT

MODEL: tc1Gps11y501 NET WEIGHT GROSS WEIGHT OUTER CARTON DIMENSION
8PCS / 1 CARTON 13.30KGS 15.10KGS 48 x 40 x 19 CM
29.26LBS 33.22LBS 18.89x15.74x7.48 INCHES
